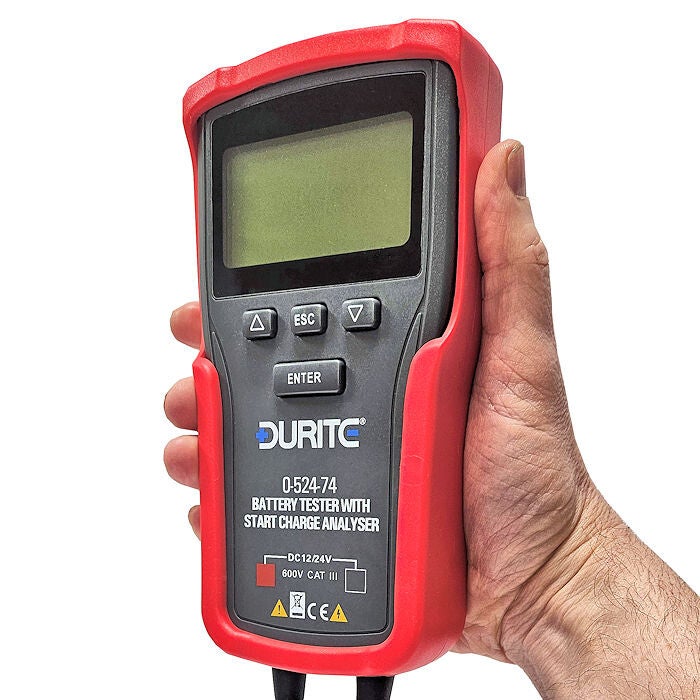

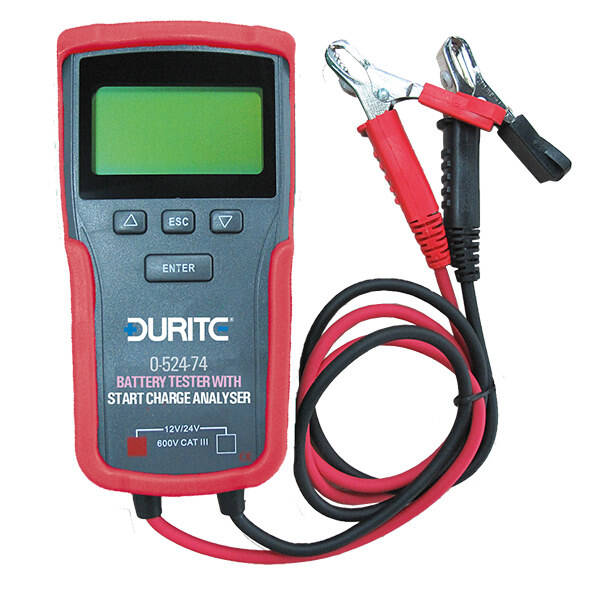

0-524-74 Electronic Battery Tester With Start/Charge Analyser - 12/24V

Durite 0-524-74, 12-24VDC battery tester with start charge analyser.

• Microprocessor controlled.
• For use on lead-acid automotive batteries including Wet Cell, Lead/Calcium, Sealed, Deep cycle, AGM, GEL and Maintenance Free.
• 12/24V
• Start/charge analyser
• LCD display
• Microprocessor controlled
• Suitable for lead-acid automotive batteries
• Voltage tolerance ±3%
• CCA tolerance ±5%

Suitable for CCA Capacity

• SAE 100 to 1700
• DIN 100 to 1000
• IEC 100 to 1000
• EN 100 to 1700

Warnings for Translation

 This battery tester is designed to test 12 and 24 volts automotive lead acid batteries, including maintenance-free and sealed-for-life batteries; it can also help analyse 12 and 24 volts starter and charging systems. These instructions must be followed for its safe and efficient use:

• Battery acid is corrosive; contact with the skin should be immediately rinsed with copious amounts of water. If in contact with the eyes rinse immediately and seek medical assistance.
• Batteries can produce explosive gases, so always work in a well-ventilated area. Do not work near naked flames, lit cigarettes etc., and avoid any action which may cause sparking.
• If the battery to be tested has a damaged or cracked case, do not use the tester; replace the battery.
• Protect the tester from dampness, and never use it in a damp or wet environment.
• Only use this product to test lead/acid automotive batteries of the appropriate voltage., Do not test batteries connected in parallel.
• Ensure the clamps are connected to clean battery posts to ensure a solid connection and accuracy while analysing the battery.
